💡Implement proper torque control measures
💡Use torque control electric screwdrivers that apply the correct torque
💡Regular torque calibration to ensure accurate torque output
💡Perform regular maintenance on assembly tools & replace any worn or damaged parts
💡Proper training for assembly line workers to understand and follow torque specifications and other quality control measures
💡Incorporate comprehensive testing and inspections, such as 4M1E (Man, Machine, Material, Method, Environment) analysis, to identify and correct quality issues
💡Prioritize quality control and torque accuracy to ensure the safety and reliability of products

When selecting a screwdriver, try to make sure that the specific torque required for the application falls somewhere near the middle of the tools torque range. For example, if you require a torque of 1 Nm, pick a tool that has a range of 2 Nm.

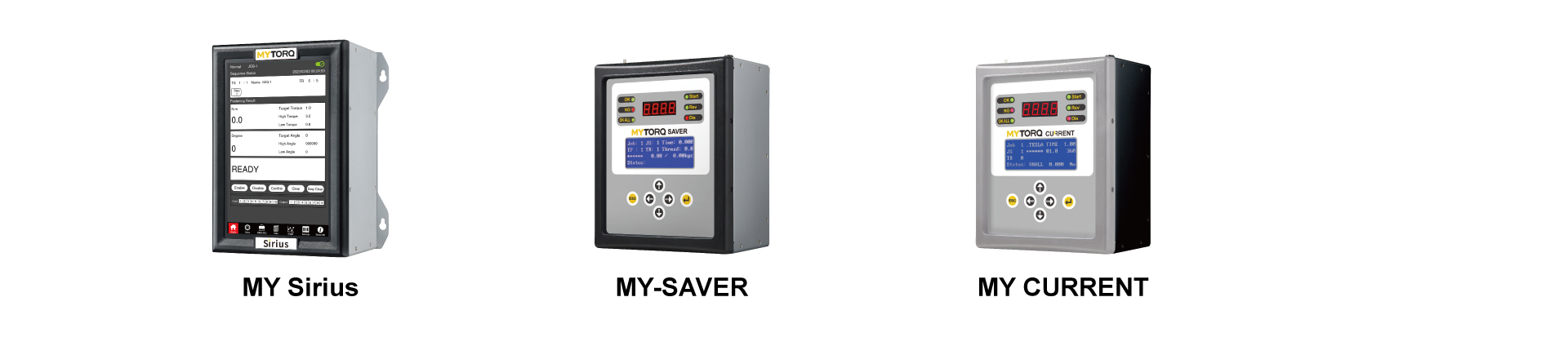

	MY Sirius	MY Saver	MY Current
Transducer torque control	V	V
Encoder angle control	V		V
Touch screen controller	V
Preventive maintenance reminder	V	V	V
Assembly data	V	V	V
Assembly curve/graph	V
Protocol	Modbus TCP Modbus RTU	RS232 ASCII LAN ASCII	RS232 ASCII LAN ASCII
Total jobs	Normal mode: 99 Advanced mode: 70	50	15
Total sequences	Normal mode: 99*1 Advanced mode: 70*50	50*50	15*15
Total tightening steps	Normal mode: 99*99 Advanced mode: 70*50*8	250	15*15*4
Tightening steps per sequence	Normal mode: 1 Advanced mode: 8	5	4
Data storage	Save in controller 1,000,000 data	SD card (32GB and below)	SD card (32GB and below)
Assembly data export via	USB FTP Modbus TCP Modbus RTU	SD card RS232 LAN WI-FI	SD card RS232 LAN WI-FI
Assembly curve/graph export via	USB FTP	RS232 LAN	RS232 LAN
Torque accuracy	±3%	±3%	±5%
Torque range accros series	0.1-25 N.m	0.1-25 N.m	0.3-7 N.m
No. of I/O	Programmable 10+10	7+7	7+7
Remote start	I/O Modbus	I/O	I/O



Straight electric screwdrivers are ideal for workstations where they can be suspended by spring balancers. They are comfortable to use for vertical tightening (Top to Bottom). Straight electric screwdrivers are also designed to operate with external control on automated workstations.

Pistol electric screwdrivers have an angled body for a better grip. They are ideal to use for horizontal tightening.

Right-angle electric screwdrivers allow users to reach screws located in tight areas.

Right-angle Z Shaped electric screwdrivers enable users to tighten screws next to wall.
