Features

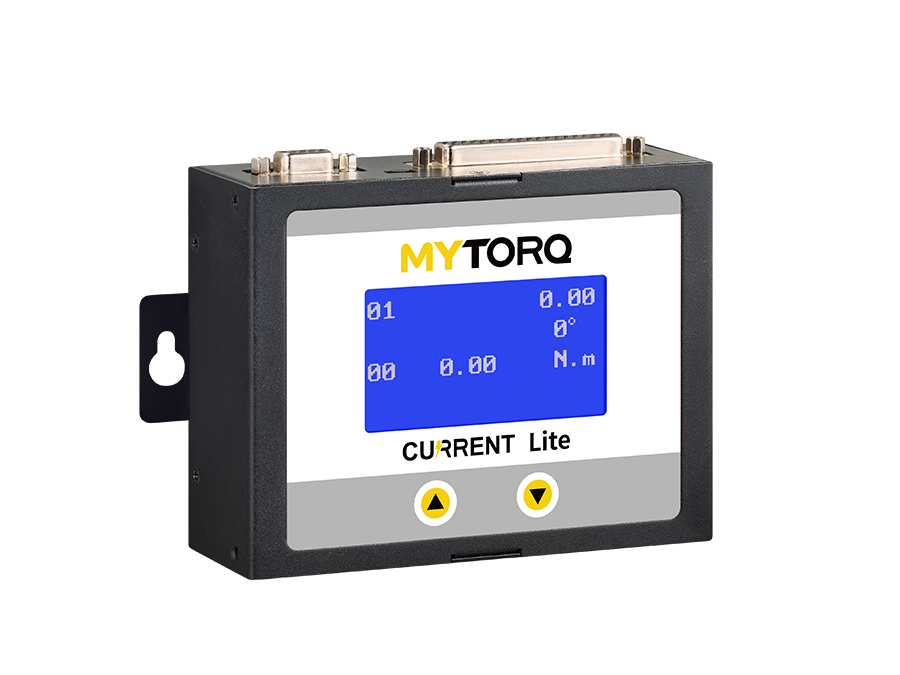

MYTORQ current control tightening system offers high torque accuracy and repeatability. It allows users to fully control and monitor the entire screw rundown process. Many costly tightening errors such as floating screw, stripped screw, over torquing…etc. can be eliminated. Users can adjust current level to achieve tightening goals with consistent tightening results. Parameters are saved in controller and can be adjusted to optimize tightening process for all kinds of joints. It’s compact light weight design makes it easy for long time operation.
Specifications
Model |
MY-CURRENT Lite |
Input Voltage |
DC 40V |
Output Voltage |
DC 40V |
External connection input |
Start/Reverse /Disable/Confirm |
External connection output |
Start/Reverse/OK/NG |
External dimensions |
135 x 105x 45 (mm) |
Weight |
620g |

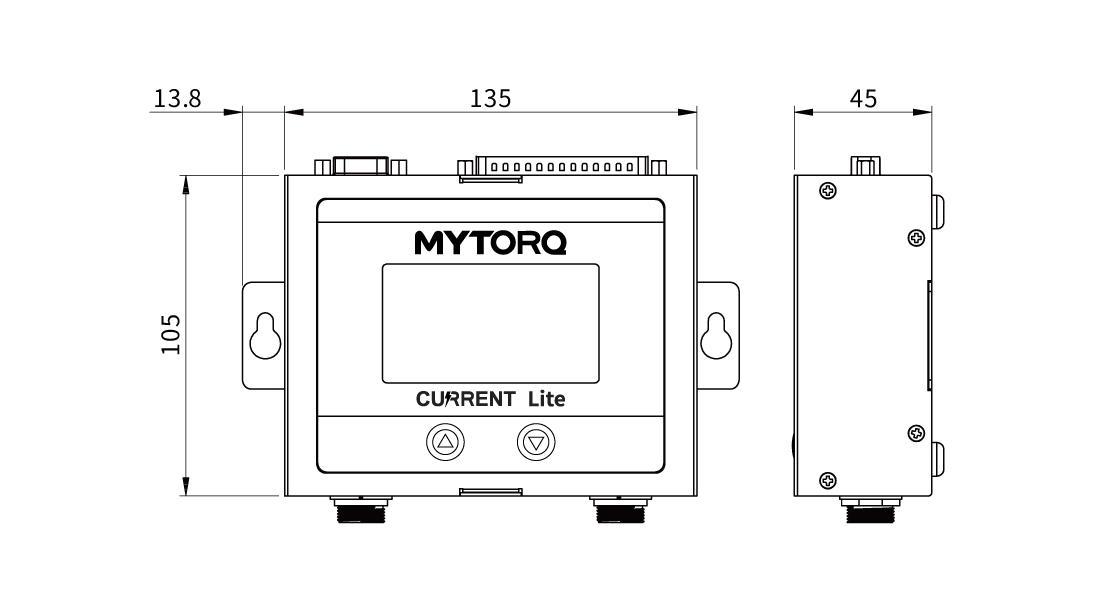

External Dimension
Torque Range Reference Chart
