Producto  /   Carbon Brush Screwdrive

BSD-8000 Series
(Push Start)

Modelo
CONSULTA

CuotaMail
Imprimir

Feature

  • New technology high temperature-resistant, vibrating-resistant, slippery-resistant, friendly holder, free from fatigue under long-time using and improve production efficiency.
  • Low-voltage automatic clutch electric screwdrivers with power controllers, can keep long-time operation,
  • high stability, no influence by fluctuated voltage and improve production efficiency.
  • High tech DC motor made by Japanese materials. Fast start with low electric current.

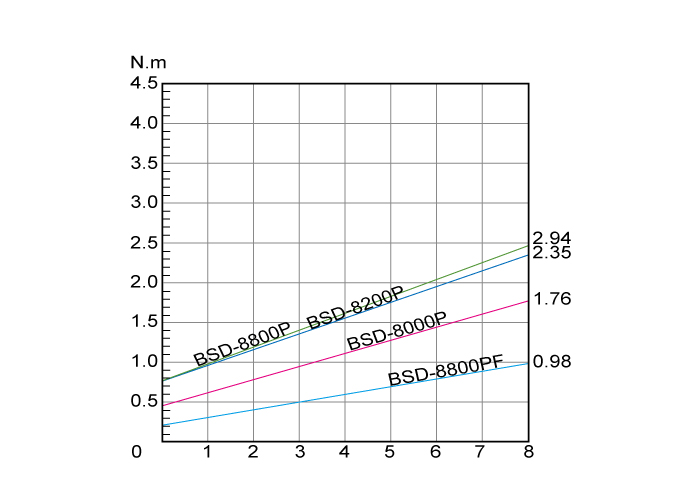

  • Precisive torque, torque adjusted from small to large, stepless, stable, fast speed,easy operation and improve production efficiency.

Especificaciones

Model Input
Voltage		 Torque
(N.m)		 Power
Consumption		 Speed
(r.p.m)		 Screw SizeDia
(mm)		 Power Controller Bit Type
BSD-8000P DC24or32V 0.49-1.76 50W 1000/700 2.0-3.5 BSP-32HL A,B
BSD-8200P DC24or32V 0.69-2.35 50W 750/520 2.6-4.0 BSP-32HL A,B
BSD-8800P DC24or32V 0.78-2.94 50W 530/350 3.0-5.0 BSP-32HL A,B
BSD-8800PF DC32V 0.2-0.98 50W 2000 2.0-3.0 BSP-32HL A,B

Applicable Bit Type

Descargar

BSD-6200P / BSD-6600P / BSD-6600PF / BSD-8000P / BSD-8200P / BSD-8800P / BSD-8800PF manual
