BSD-6000 Series<br>(Lever Start) - MYTORQ Industrial Precision Torque Control Screwdriver

CATEGORY

Products / Carbon Brush Screwdrive

Features
Specifications
External Dimension

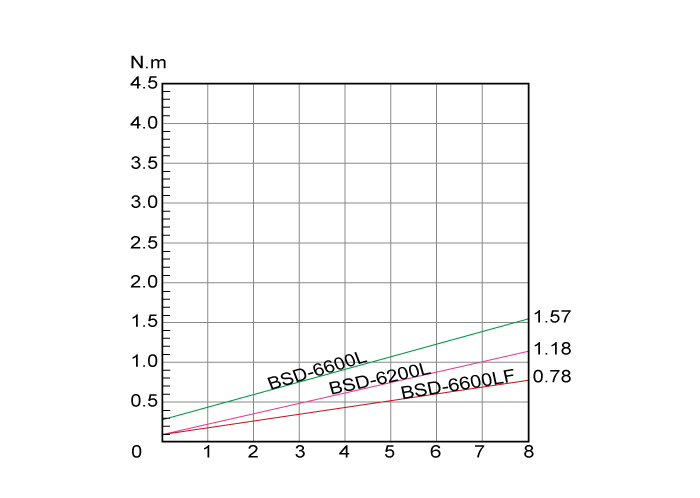

Torque Range Reference Chart
Accessoroes
Download

Features

New technology high temperature-resistant, vibrating-resistant, slippery-resistant, friendly holder, free from fatigue under long-time using and improve production efficiency.
Low-voltage automatic clutch electric screwdrivers with power controllers, can keep long-time operation, high stability, no influence by fluctuated voltage and improve production efficiency.
High tech DC motor made by Japanese materials. Fast start with low electric current.
Suitable for high-tech PC, notebook computers, game cube, etc.

Specifications

Model	Input Voltage	Torque (N.m)	Power Consumption	Speed (r.p.m)	Screw SizeDia (mm)	Power Controller	Bit Type
BSD-6200L	DC24or32V	0.1-1.18	48W	1000/700	1.6-3.0	BSP-32HL-60W(BSP-C32HL)	A,B,C,D
BSD-6600L	DC24or32V	0.29-1.57	48W	1000/700	2.3-3.5	BSP-32HL-60W(BSP-C32HL)	A,B,C,D
BSD-6600LF	DC32V	0.1-0.78	48W	2000	1.6-3.0	BSP-32HL-60W(BSP-C32HL)	A,B,C,D

Applicable Bit Type

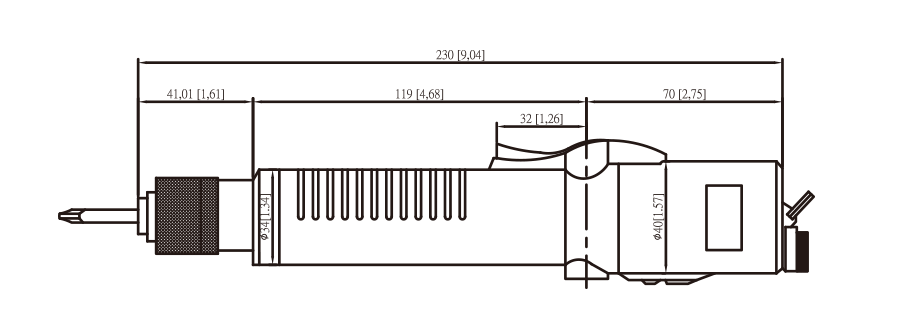

External Dimension

Download

BSD-3000L / BSD-3200L / BSD-3300L / BSD-6200L / BSD-6600L / BSD-6600LF / BSD-8000L / BSD-8200L / BSD-8800L / BSD-8800LF manual
