Model | Input Voltage |

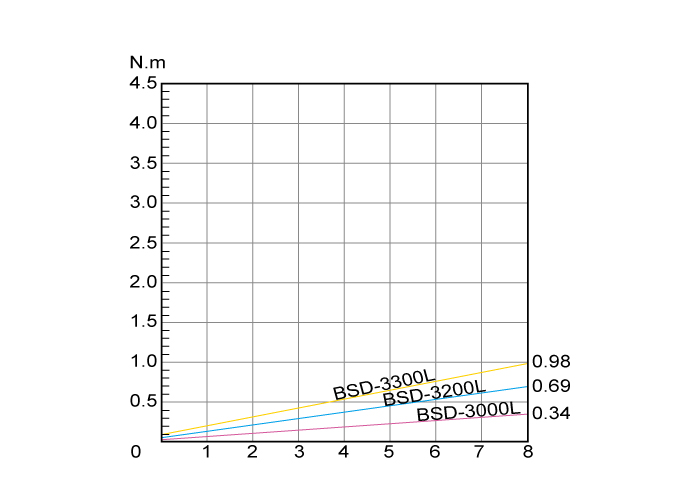

Torque (N.m) |
Power Consumption |
Speed (r.p.m) |
Screw SizeDia (mm) |
Power Controller | Bit Type |
BSD-3000L | DC24or32V | 0.03-0.34 | 25W | 1000/700 | 1.0-2.3 | BSP-32HL-60W | B,C |
BSD-3200L | DC24or32V | 0.06-0.69 | 25W | 1000/700 | 1.4-2.6 | BSP-32HL-60W | B,C |
BSD-3300L | DC24or32V | 0.1-0.98 | 25W | 700/500 | 1.6-3.0 | BSP-32HL-60W | B,C |
