Features
● Compact and ergonomic design for long time operation without hand fatigue
● Rubberized grip provides a non-slip surface to secure hold, absorbs shock and vibration
● 4 tool start methods: lever start, push start, lever + push start and external start
● 4 LED illumination mode: On / Off / On when the tool starts / On when triggered
● Tightening status LED and buzzer alert
● Transducerized DC torque & angle control tightening system
● High-resolution encoder, angle control 1° - 30600° (30600° is approx. 85 turns)
● < 1% tolerance, precision & accurate torque transducer
● Beginner-friendly downshift and threshold settings in normal mode
● 5 available rundown steps to customize your screw rundown process
Specifications
| Model |
Input
voltage |
Torque
(N.m) |
Torque
(kgf.cm) |
Torque
(Lbf.in) |
Repeatable Torque Accuracy |
Free Speed
(r.p.m)
|
Power
Consumption |
Weight
(g) |
Length
(mm) |
Applicable
controller |
Bit Type |
| MY-EVO 25 |
DC40 |
3.13~ 25 |
31.93 ~255 |
27.70 ~ 221.28 |
+/- 3sigma / AVG., 5% |
350~20 |
90W |
1790 |
300 |

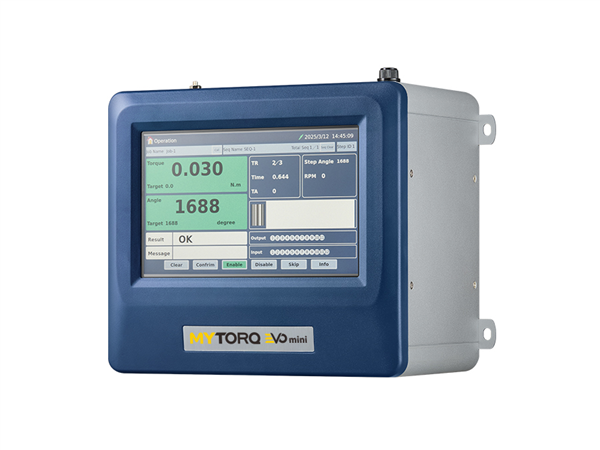

MY-EVO mini |
B 9.5、W3/8〞 |

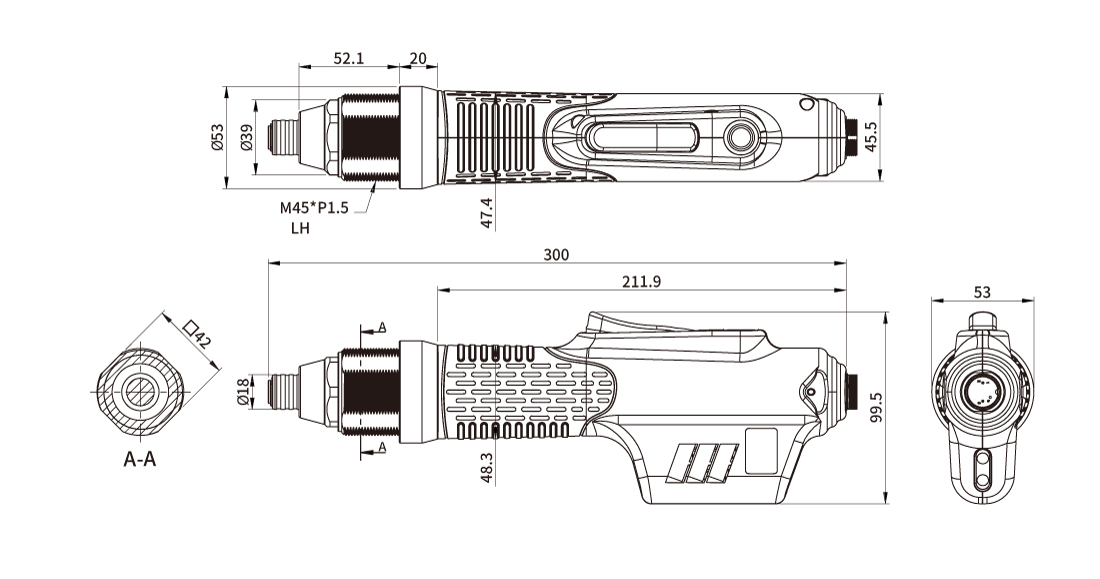

External Dimension
Torque Range Reference Chart
